Vexilar Vision X10 Live View System Pro Bundle [VX10PB]

Vision™ X10 Live View System Pro Bundle

The Vexilar Vision™ X10 is a live-imaging sonar unit, designed specifically for avid ice anglers. The unit features a streamlined user interface that makes it easy for beginners and advanced anglers alike. The Vision X10 delivers ultra-fast response times, a crystal-clear sonar display, and exclusive Stealth Sonar technology. Built with ice anglers in mind, the X10 is built to withstand brutal winter conditions.

The Vision X10 head unit features a large 10-inch touchscreen display with digitally enhanced brightness for crisp visibility in any condition. It also includes physical navigation buttons, allowing you to operate it easily even while wearing gloves. The transducer features a single bar with two frequency-steered cones, each producing a 36-degree field of view, and fits down a 6-inch ice hole. With no external brain box, the system is lighter, more compact, and easier to transport, coming in at 16.5lbs.

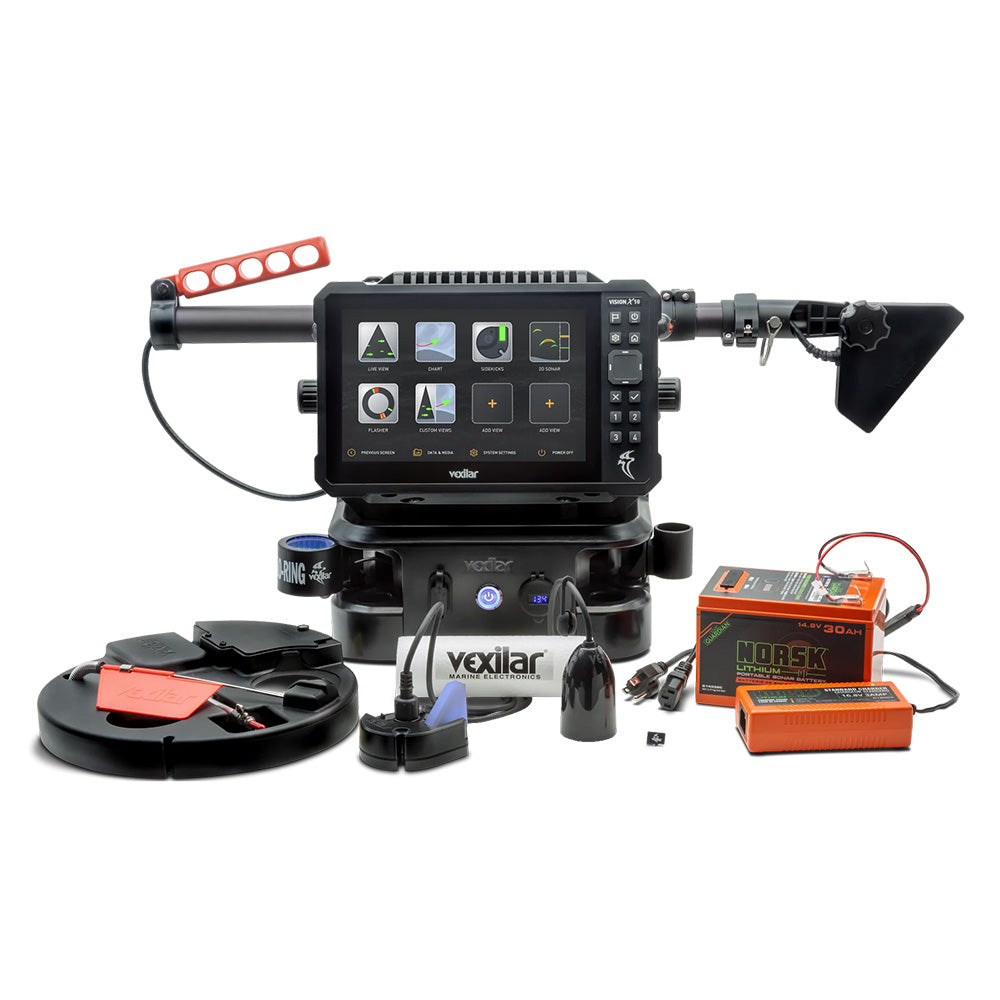

The Vision X10 Ice Bundle Includes:

• 10” Touchscreen Display, Transducer, and Power Cable
• Screen Cover
• Vision Shuttle
• Mounting Hardware
• 3-Piece Telescoping Transducer Pole (27.5” - 60”)
• Transducer Pole Holders
• 30Ah Norsk® Battery and charger
• Preloaded Midwest maps with adjacent Canadian provinces
• 64GB SD card
• Glo Ring
• Sidekick® Portable Sonar
• Thermal Tip-up

The Vision X10 Pro Bundle has everything you need from a live-imaging sonar bundle, plus some upgrades and accessories that take this bundle above and beyond. If you’re an avid ice angler looking for a bundle with all the bells and whistles, this is the bundle for you!

Features:

• Live View in Forward and Down modes. Switching between Forward and Down mode is quick and easy with the push of a button; no need to take the transducer out of the water. Maximum range of 140ft forward and down.
• Charts with preloaded Midwest and adjacent Canadian maps. Create custom waypoints and track your routes for future reference.
• 2D Sonar with A-Scope, providing real-time data with scrolling history of fish and lure activity.
• Digital Flasher with adjustable Zoom Scope, ideal for targeting those suspended schools of fish.
• Customizable Split-Screen views in vertical and horizontal orientations.
• Sidekick mode, which allows you to connect up to four Wi-Fi sonar transducers to the Vision X10 head unit, enabling you to monitor tip-ups or set lines from a distance and get alerts when a flag goes up.
• Five color palettes and customizable data overlay options provide a fully personalized viewing experience. With Forward and Down viewing ranges of up to 140 feet and easily adjustable gain, clarity, noise rejection, interference rejection, and contrast settings, the Vision X10 is designed to adapt to any fishing scenario.
• Create up to four shortcuts using the programmable shortcut buttons, giving you instant access to your favorite modes and features with the press of a button. You can also easily manage your waypoints, routes, screenshots, and screen recordings in the data & media menu. If you fish in a wheelhouse with a TV, the Vision X10 can also be screencasted to the T.V. for a larger viewing experience.

Specifications:

• Display Resolution: 1280 x 800
• Display size: 10.1"
• Dimensions: 12.5 x 7.75 x 3.5 in
• Weight: 4.4 lbs
• Input: Touchscreen with keyed assist
• Water Rating: IPX7
• Built-in Mapping: Yes - 1-year iBoating subscription
• Power Draw: 0.7A average, 1.5A max
• Recommended Fuse: 5A
• Warranty: 1 year
• WiFi: Yes
• Bluetooth: 5.1
• Screen Casting: Yes
• Sidekick Compatibility: Yes

Transducer Specifications:

• Dimensions: 6 x 4 x 1.375 in
• Weight: 1.3 lbs
• Water Rating: IPX7
• Cord Length: 14.9ft (4.5m)
• Cone Angle: 2 x 36°
• Warranty: 1 year
